Product Overview

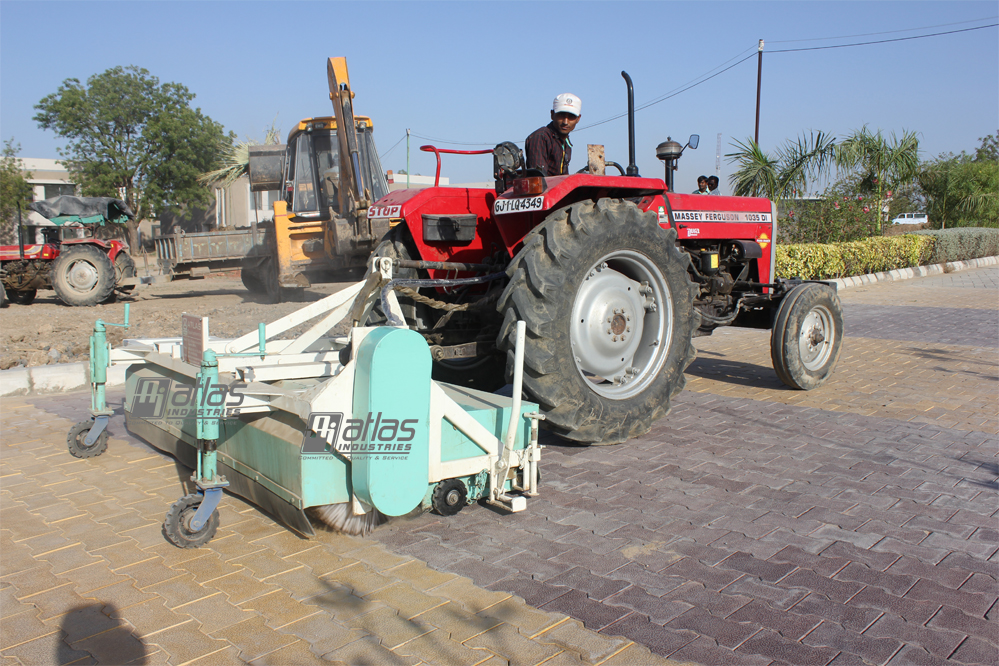

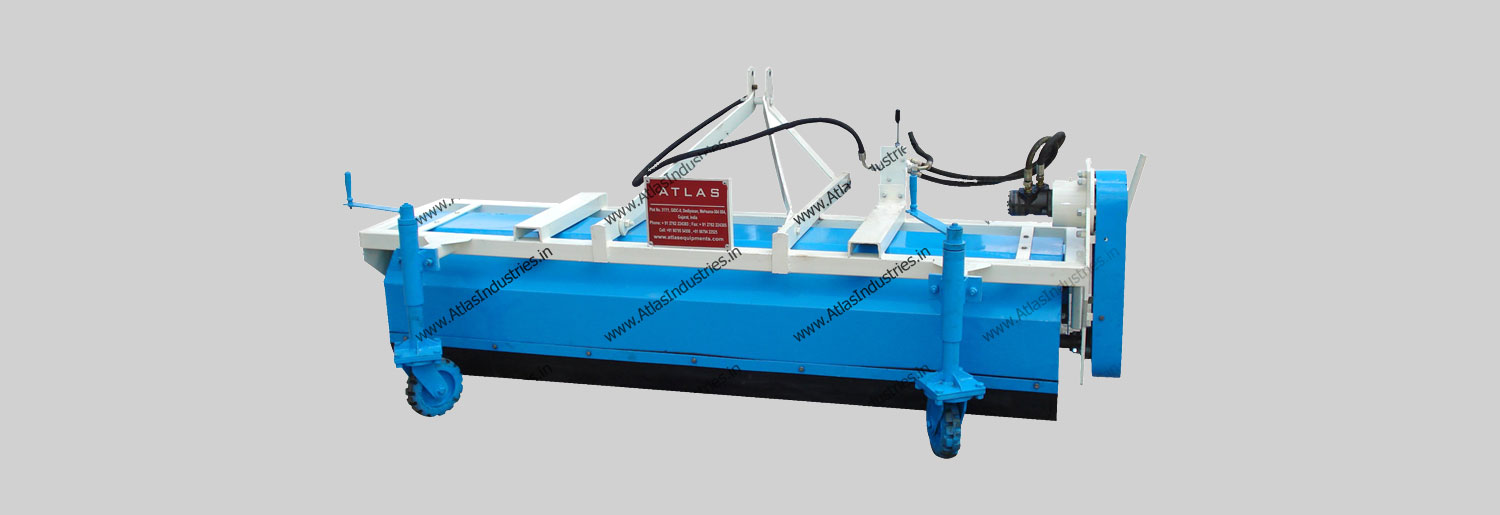

ATLAS Hydraulic Brooms can be conveniently moved by attaching at the rear of a tractor.
All the parts used in this road sweeper are highly durable and suited for tough Indian conditions.
Operating and maintenance of this hydraulic road sweeper is easy and does not require skilled labour.
ATLAS Hydraulic Sweepers come with a sweeping width of 2.10 meters and can be operated conveniently with the hydraulic drive of the tractor.
Its cleaning width is 2.10 mtrs.
Components
Drive
The hydraulic drive of the tractor drives the hydro motor of the broom. We house a heavy bearing housing so that the motor takes heavy torque easily.
Chain wheel drive
The movement of the brush is through a chain wheel drive which is powered by a hydro motor, the chain wheel drive is easy on maintenance and is covered by a cover for protection.
Pressure setting

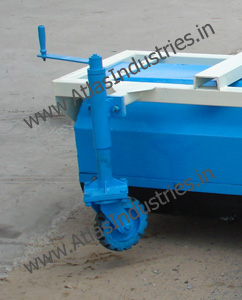

To set the required pressure of the brush, the jack can moves the castor wheel up-down. The castor wheels are heavy duty and the jack provided to move the castor wheels and to apply pressure is a screw type jack.
Dust collection bucket
There is a dust collection bucket provided with the hydraulic broom which collects all the dust while the brush does the cleaning.
The bearing holds the shaft on which the brushes are fitted. The bearings are for the easy movement of the brushes. The bearings are mounted on two bolts which can be easily removed to change the brushes. Maintenance becomes easy.
Operating handle
The operating handle is used to empty all the dust as the dust collection bucket is full.
Photo Gallery
