ASPHALT BATCHING PLANT

Modular asphalt batch plant from leading Indian manufacturer of mix type asphalt plants. We are looking to export asphalt batching plant to Sri Lanka, Nepal and Nigeria.

Product Overview

Modular asphalt batch plant from leading Indian manufacturer of mix type asphalt plants. We are looking to export asphalt batching plant to Sri Lanka, Nepal and Nigeria. Now available in capacities 80 tph, 120 tph, 160 tph, 200 tph and 260 tph. Store, edit unlimited recipes on PLC panel. Cost-effective machine with low running cost and lowest cost of spare parts. More than 65 installations in 3 years. Tried and tested design for ultimate performance.

Capacities above 260 tph are tailor-made.

Atlas Industries offers asphalt batching plant for sale. We have developed this equipment to help contractors produce hot mix asphalt using a discontinuous process with the help of accurate weighing technology coupled with fast, low maintenance and reliable mixer.

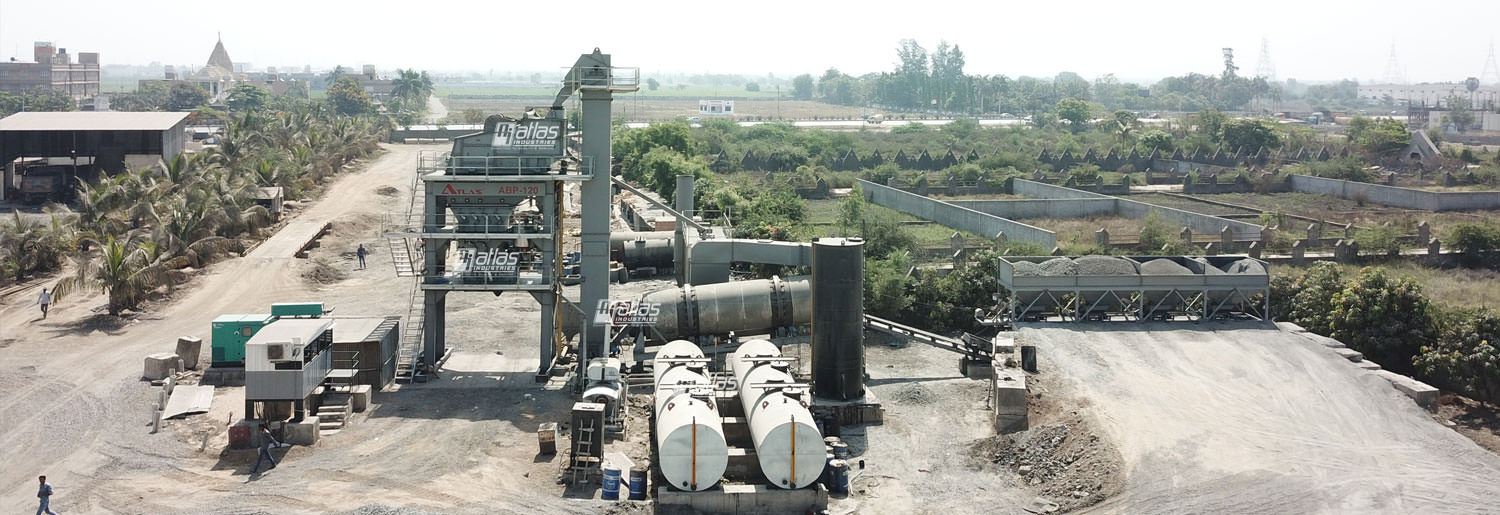

Below is the tower of asphalt plant by Atlas Industries.

Component wise details you will find in the COMPONENTS TAB above.

SELECT YOUR PREFERRED CAPACITY

80 tph
120 tph
160 tph
200 tph
260 tph

STYLE

Stationary & semi mobile

POLLUTION CONTROL

Bag house or wet dust collector

BURNER

Multi fuel

MIXING UNIT

Twin shaft

CONTROL SYSTEM

PLC type SCADA optional

Asphalt Batch Plant Operational And Maintenance Cost

Atlas has made sure that operating and maintenance cost of its asphalt batching plants is lowest. The main aim is to develop a design that allows customers to have a low price equipment that allows peace of mind. Contact us to know how we can help you lower your overall cost and maximise your return on investment. Atlas manufactured asphalt batch mixing plant for sale has many advantages over the competition. It is a simple-to-use machine which is designed to perform with low maintenance. The structure is heavy and suited for rough applications. Precise weighing ensures that customer gets his job done with precision. Some of the advantages are as:

Basic plant structure is strong.

Containerized design reduces transportation cost.

Tower unit is mounted on skid plates. It helps in quick installation. Other units like cold feeders, drum unit, etc. It is supplied with skid mounting.

Burner is low noise, high efficient and multi fuel.

Low maintenance and low operating cost is the highlight of this asphalt batch mixer from India.

Drying drum is thermally insulated.

The pairing of burner and drum is perfect which allows heating of aggregates evenly in short time after spending less fuel.

All units are modular. This helps to reduce installation and transportation time.

Total seven pneumatic cylinders are used. The size of each cylinder is same allowing to keep less stock.

Bitumen weighing and transfer system is simple and maintenance free. We are using only one bitumen transfer pump to transfer bitumen.

Mixing unit gear boxes are planetary type. They are directly mounted on each shaft. This allows better torque absorption.

The cylinders are easily accessible and hence maintenance is easy.

Less civil work is required at site.

Bag filter unit is more efficient. It has total of three rotors at the top which makes cleaning efficient.

The control panel is equipped with standard components.

The PLC panel comes with easy to use software and color display. It is as easy as operating a mobile phone.

Vibrating screen sizes can be customized to suit customers requirement.

Each unit of the tower has sufficient space for maintenance.

It is also possible to supply this with wet dust collector instead of bag filter.

We have kept the cost of spare parts the lowest in the industry.

Various hot mix recipes can be stored in the panel and can be changed easily with few clicks.

Asphalt Mixing Plant – Hot Batching Plant

Get Asphalt Batch Mix Plant for sale from leading exporter, supplier of hot mix plant. Asphalt batch plants from Atlas is available for sale with advanced touch screen PLC panel. Available in modular design for fast assembly and installation. If you are looking for a reliable equipment manufactured by a reputed manufacturer with years of manufacturing experience of construction equipment, then ATLAS is the answer. We offer not only reasonably priced Asphalt Mixing Plant but also promise a tension free and clean performance.

The components are: cold aggregate feeding system; counter flow drying drum with multi fuel burner; elevator system for conveying hot aggregates to the vibrating screen, batch tower unit comprising of four deck vibrating screen; separate weighing bins for aggregates; separate weigh hoppers for bitumen and for mineral; pug mill type mixing unit below the aggregate weighing unit;& primary and secondary pollution control devices which work in sync with each other; asphalt storage & heating tanks and PLC control panel inside the control cabin.

The spare parts are also reasonably priced by us so that you can keep and use this equipment for years to come, not need to change equipment frequently with each project.

Components

Aggregate feeders & vibrating screen

Cold feed bins are with variable speed drive motors for each bin allowing to control individual material as required.

Primary vibrating screen is single deck for oversize material removal before the aggregates enter the drying drum.

Drying drum

Drying drum of asphalt batch plant is designed with flight design that help in lifting the aggregates so that they get heated evenly before they exit the drum.

Drying of aggregates takes place in the drying drum making the process fuel efficient.

Even raw materials with high moisture content get dried easily. Insulated drying drum helps to retain heat and save energy.

Burner

Modulating burner is designed for low fuel consumption, low noise and easy maintenance. The burner is capable of running on diesel or LDO (Optional: FO).

Burner size and drum rotation speed is coupled with efficient flights. This allows maximum output of the burner while simultaneously reducing the fuel consumption.

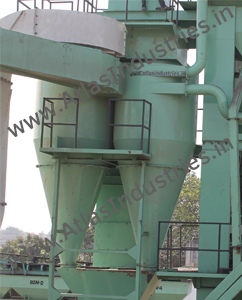

Dry dust collector

Correct sized dust collector is the key to the success of the asphalt mixer. The plant is supplied with cyclone type dry dust collector.

Dust laden gas passes through the dry dust collector where they are cyclonically treated to settle the heavier dust. Excess dust from the vibrating screen and hot bins are also sucked by the dry dust collector.

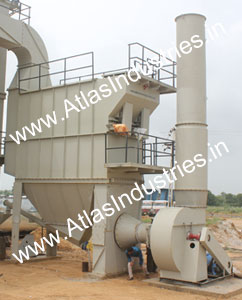

Bag house filter

Bag house works in combination with the dry dust collector. It is one of the most effective pollution control device available today.

Venturi type wet dust collectors are also available.

Bitumen tanks

Fully insulated tanks available in various capacities.

Asphalt tanks are with direct or indirect heating and With hot oil jacketed piping.

Hot elevator and mineral filler hopper with elevator

Hot elevator is for taking the dried aggregates to the top of the tower for screening. Hot elevator is fully covered and with anti-slip feature.

Filler hopper is for addition of minerals to the hot mix. Filler is conveyed to the filler weighing hopper by a bucket elevator.

Vibrating screen

Four deck vibrating screen is for separation of four types of aggregates and removing oversized aggregates. The screen is powered by strong vibrating motors allowing vibration in circular motion. The screen of asphalt plant is designed for free flow of the material.

Large platform across the screening unit makes access to screens easy. Maintenance and screen replacement can be done in quick time. Screen sizes can be customised.

Hot aggregates bin

Hot bins have compartments to store aggregates separately after they are screened by the vibrating screen. These hot bins store the aggregates for a short period of time till they are weighed.

Weighing for aggregates

Weighing system is separated in such a way that it is not affected by the vibrations from the vibrating screen.

Aggregates are discharged one by one by the weighing system into the twin shaft mixer for mixing.

Weighing for minerals

Weigh hopper for filler is mounted on three load cells with pneumatic cylinder for quick discharge.

It is free from vibrations from the vibrating screen.

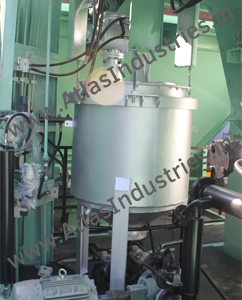

Weighing for bitumen

Bitumen is weighed in a weigh hopper which is suspended on 3 load cells.

Mixing unit

Mixers manufactured by Atlas are designed for homogeneous mixing in short time. Mixer is fitted with long life and easy replaceable Ni-Hard liner plates and tips.

Strong shelled body is insulated by hot oil jacketing from all sides. This mixer is with synchronized drives on each shaft. Quick maintenance is possible by easy access to the maintenance doors.

Discharge gate runs through the entire length of the mixer allowing quick discharge of the hot mix material.

PLC control system

The software of PLC control panel is developed in house. It is keeping in mind that the operation of asphalt batch mix plant has to be easy.

Colour display on HMI allows to read information easily.

Control panel is designed for easy maintenance.
